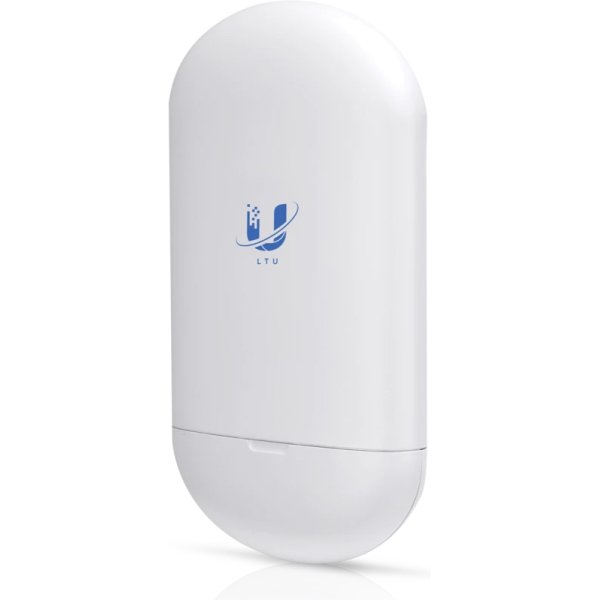

UBIQUITI LTU client radio LTU-LITE, 5GHz, 13dBi, λευκό
-PtMP CPE
-1024 QAM
-10/20/30/40/50 MHz channel bandwidth
-Central configuration management from AP side
-Frequency split
-Auto power adjustments
-Router mode support
Τεχνικά χαρακτηριστικά
Networking Interface: (1) 10/100/1000 Ethernet Port
Enclosure: Outdoor UV Stabilized Plastic
Max. Power Consumption: 8.5W
Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
Power Method: 24V Passive PoE (Pairs 4, 5+; 7, 😎
Voltage Range: 22 – 26V
Max. Conducted TX Power: 22 dBm per Chain
Gain: 13 dBi
Cross-pol Isolation: 20 dB Minimum
Max. VSWR: 1.8:1
Beamwidth: 45° (H-pol) / 45° (V-pol) / 45° (Elevation)
Polarization: Dual Linear
Mounting: Pole-Mount Wall Mount (Kit Included)
Wind Loading: 20 N @ 200 km/h (4.5 lbf @ 125 mph)
Wind Survivability: 200 km/h (125 mph)
ESD/EMP Protection: ± 24kV Contact/Air
Operating Temperature: -40 to 60° C(-40 to 140° F)
Operating Humidity: 5 to 95% Non condensing
Dimensions: 153 x 84 x 39.5 mm
Weight: 250 g
